CNC 3 & 5 Axis Vertical Milling Services

(Click on thumbnail to enlarge)

3axis milling-1

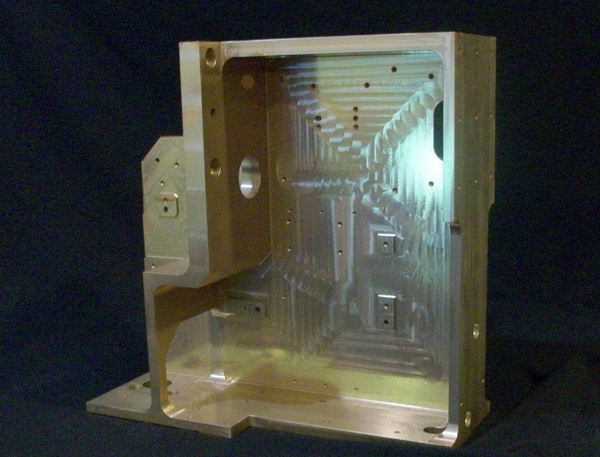

3axis milling-2

Available for a wide range of metal and plastic polymer materials, NCAD Products, Inc.'s CNC vertical milling services feature everything from drilling, boring, reaming, pocketing, tapping, milling, and Multi axis contour surface machining. To offer such varied milling services, NCAD uses an array of specialized equipment.

Our machines are available in 3 and 5 axis configurations, enabling the expert milling of even the most complex machine component geometries. NCAD accepts all common file types, so it's easy to get started: just contact us today to learn how NCAD can help you.

3 & 5 Axis Vertical Milling Capabilities

Vertical Milling Processes

Drilling
Boring
Counterboring
Countersinking
Pocketing

Profiling
Reaming
Tapping
Contour Surface Milling

Materials (Metals)

Alloy Steels
Aluminum
Brass
Bronze Alloys

Carbon Steel
Stainless Steel
Titanium

Materials (Plastic Polymers)

ABS (Acrylonitrile Butadiene Styrene)
Acrylic
Fiberglass Reinforced Plastics
Nylon
Phenolic
Polycarbonate
Polyethylene

Polypropylene
Polystyrene
PTFE (PolyTetraFluoroEthylene)
PVC (Polyvinyl Chloride)
PVDF (Polyvinylidene Fluoride)
Teflon

Materials (Other Materials)

Composite Materials
Fiberglass
G-10

REN Shape
Tooling Board
Wood

Cutters

Flat End Mill
Ball End Mill
Chamfer Mill
Face Mill

Twist Mill
Reamer
Tap

Cutting Tools

High-Speed Steel (HSS)
Carbide

Carbon Steel
Cobalt High Speed Steel

Axis

3 Axis
5 Axis

Type of Collet/ Adapter

Spindle - have a standardized spindle end

Vise

Plain
Multi Station
Chick Foundation Plate

4-Axis Rotary
5-Axis Trunion

Equipment Capabilities

Electric-Drive Motors
Variable Spindle Speeds
High Speed Machining

Coolant Systems
Power-Operated Table Feeds

Length

Maximum
64 in
1625.6 mm

Width

Maximum
40 in
1016 mm

Height

Maximum
30 in
762 mm

Production Volume

High Volume
Large Run
Large Scale Production Volume Run
Long Run

Low Volume
Prototype
Small Run
Specialty Production Shop

Lead Times Available

Emergency services available
Quoted on job by job basis
Rush Services Available

Industry Standards

ISO Registered
International Organization for Standardization

Mil-Spec Compliant
Military Specifications

File Formats

AutoCAD (DWG,DWZ)
DXF - Drawing Interchange Format, or Drawing Exchange Format
IGES - Initial Graphics Exchange Specification, ANSI file format.

SolidWorks (SLDPRT,SLDDRW,SLDDRT)
STEP - Standard for the Exchange of Product Model Data
