Sheet Metal Fabrication

(Click on thumbnail to enlarge)

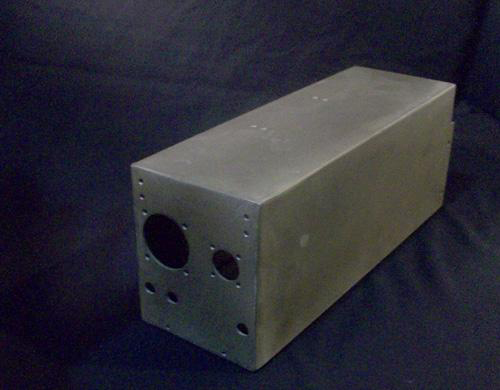

Sheet metal 01

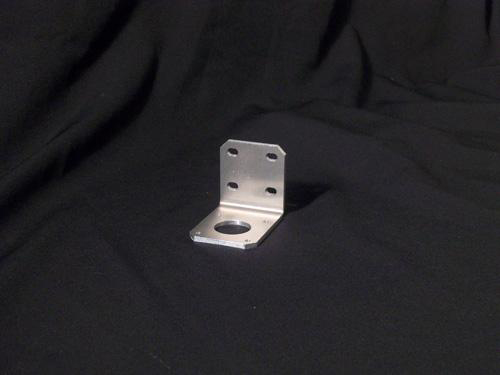

Sheet metal 02

NCAD Products, Inc. provides sheet metal fabrication for both contract manufacturing and prototypes. We're happy to develop products ranging from aircraft assemblies and individual components. Supplying quality parts to medical, HVAC, architectural, and agricultural industrial sectors. NCAD is equipped with the latest CNC technology for CNC Cutting, Milling, Drilling, Bending, Folding, and Hemming.

There are several key customer benefits in consolidating the manufacturing under one roof. It allows for greater efficiency and with that comes a cost benefit. If NCAD is contracted to build a full assembly or fabricate and weld parts together, our customers are given the piece-of-mind that we are making the parts with the end product in mind.

Value Added Services

NCAD is also happy to offer addition services, including design, engineering, finite element analysis, prototyping, research and development, welding, painting, powder coating and Assembly.

Sheet Metal Fabrication Capabilities

General Capabilities

Contract Manufacturing
Prototypes

Industry Focus

Aerospace
Simulation and Training
Medical
Ornamental

Agricultural
Architectural
HVAC
Heating, Ventilation and Air Conditioning

Industry Standards

ISO Registered
International Organization for Standardization

Mil-Spec Compliant
Military Specifications

Sheet Metal Product

Aircraft Assemblies and Components
Aluminum Parts
Building Products
Bus Assemblies
Doors

Drawers
Sheet Metal Parts
Steel Panels
Subsystem Enclosures

Fabrication Process

Bending-25 Ton
Folding
Hemming

Painting
Powder Coating
Welding

Automation Capabilities

CNC

Gauge Size

7 to 20

Maximum Sheet Metal Width

1219.2 mm
48 in

Maximum Sheet Metal Length

120 in
3048 mm

Additional Services Provided

Build
Consulting
Design

Finite Element Analysis (FEA)
Prototyping

File Formats

AutoCAD (DWG,DWZ)
DXF - Drawing Interchange Format, or Drawing Exchange Format
IGES - Initial Graphics Exchange Specification, ANSI file format.

SolidWorks (SLDPRT,SLDDRW,SLDDRT)
STEP - Standard for the Exchange of Product Model Data
