Large Format CNC Machined Aircraft FLIR Mounting Plate

(Click on thumbnail to enlarge)

Large Format CNC Machined Aircraft FLIR Mounting Plate

Aircraft FLIR Mounting Plate

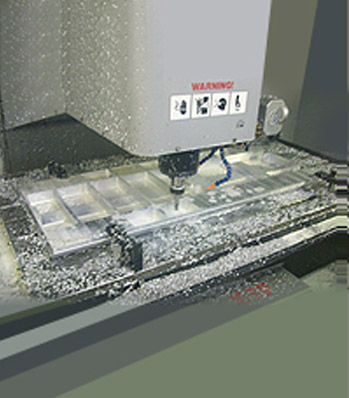

This project involved the manufacture of a mounting plate for use in the aerospace industry. Using a large format CNC milling machine, we profile milled the component, which was composed of 6061-T6 aluminum. Next, the plate was milled out leaving an intricate web truss structure while minimizing the overall weight of the part. Secondary operations were done after the plate was completed, helicoil threaded inserts were added. The final FLIR upper plate measured 48 inches long, 21 inches wide, and 2 inches high, with a base material thickness of 2.25 inches.

Highlights of this Aircraft FLIR Mounting Plate

Product Description

This mounting plate is used in the aerospace industry.

Capabilities Applied/Processes

Large format CNC Milling

Equipment Used to Manufacture Part

Milling Machine - HAAS VMC

Overall Part Dimensions

48.0 inches long x 21.0 inches wide x 2.0 inches high
Base Material had 2.25 inch thickness

Tightest Tolerances

±.005"

Material Used

6061-T6 Aluminum

Max Material Finish

125 RMS

Typical Machining Operations

Profile Milling
Tapping
Pocket Milling

Drilling
Contour Surface Milling

Secondary Operation

Helicoil Thread Inserts

Characteristics

Mil-Spec Chem film and Painted

Estimated Part Weight

51.80 lbs

Industry for Use

Aerospace/Defense

Delivery Location(State)

Florida

Number of Parts Manufactured

8 units

Delivery Time

4 Weeks

Standards Met

Customer supplied print, STEP File outputted from Catia

Product Name

FLIR Pod Upper Plate
